產品介紹
INTRODUCTION

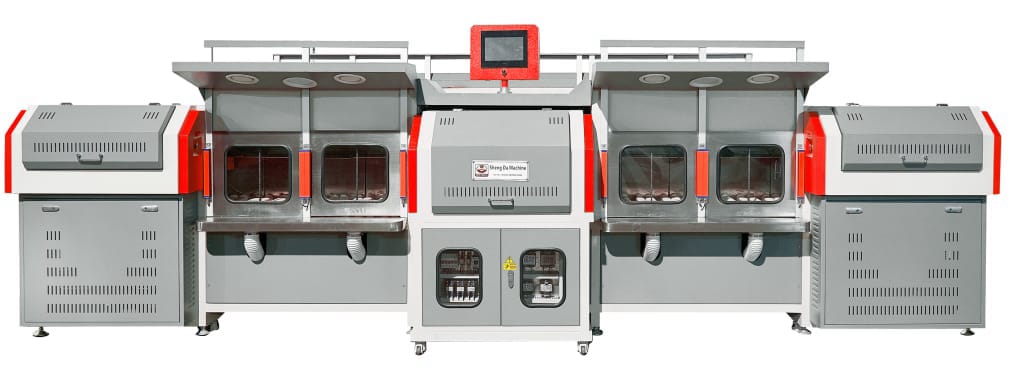

SD-969NIR-A型廻轉式近紅外線活化生產線，結合精益生產的先進理念，將直線式設計成廻轉式，大大節約空間和提升生產效率。其NIR低炫光滲透近紅外線、橘皮紋燈罩、自動封閉門等高端技術大大提升加熱速度，光源使用率，杜絕熱源流失。特別適合近年流行的小組式生產模式。
可根據客戶需求，訂制烘箱及工位長度。
SD-969NIR-A type Rotary soften production line, is invented with the concept of lean production. It changes the linear way of production into a rotary type, which greatly saves space and improves production efficiency. Its high-end technologies such as low glare penetration near infrared, orange peel lampshade, automatic closing door greatly enhances heating speed, light source usage, and eliminates heat loss. It is suitable for the group production mode.
Length of Oven and work place can be customized.
產品細節
Details
A、廻轉式設計
B、雙層設計隔離方式
C、上層托盤式，下層可調距鞋楦架設計。
D、NIR低炫光滲透近紅外線燈管加熱
E、工作位封閉式自動門設計
F、特制橘皮紋高反射燈罩
G、配備刷膠機及下抽風系統
A、Space Saving of Rotary design
B、Isolated double layers
C、Tray upper layer, adjustable shell on bottom layer
D、NIR dazzle light infrared tubes
E、Automatic on-off door
F、Special orange peel high reflection lampshade
G、With glue brushing machine and exhaust system
功能詳述
Function Detial
A、廻轉式設計，大大節省空間。
B、雙層設計采用隔離方式，配合貼底作業處理，上膠、組合等流程設計，提高工作效率，節省人力。
C、上層采用托盤式，下層采用可調距鞋楦架設計。
D、采用NIR低炫光滲透近紅外線燈管加熱，配合熱風循環，升溫速度快，
溫度穩定精準。（溫度開啟約40s-50s可快速達到設定值溫度）
E、工作位采用封閉式自動門設計，完全杜絕熱風的流失，節能環保。
F、采用特制橘皮紋高反射燈罩，大大提高了光源使用率，縮短烘干時間，
更加節能。
G、本機配備刷膠機及下抽風系統，使作業空間空氣更環保。
A、With the rotary design, it saves much space
B、The double-layer design enhences efficiency and saves manpower, due to its multifuction like outsole processing, cementing and attaching
C. The upper layer uses tray , and the lower layer uses adjustable frame
D With the NIR dazzle light infrare and hot air circulation system, its temperature is much more stable and accurate, and can reach the setting temperature within 40-50s
E、The working position adopts automatic door, which eliminates the loss of hot air and saves energy
F、The special orange peel high reflection lampshade greatly improves the light source utilization rate, shortens the drying time and is more energy-saving.
G、This machine is equipped with a glue brushing machine and a exhaust system to make air of the working space more environmental friendly
型 號 | Model | SD-969NIR-A |
電壓 | Voltage | 380V |
功率 | Power | 26kw |
產量 | Productivity | 1000pairs/8hours |
凈重 | Net weight | 1800kgs |
毛重 | Gross weight | 1900kgs |
| 機械尺寸 | Machine size | 5900x1870x1800mm |
包裝尺寸 | Packing size | 6000x1970x1900mm |
